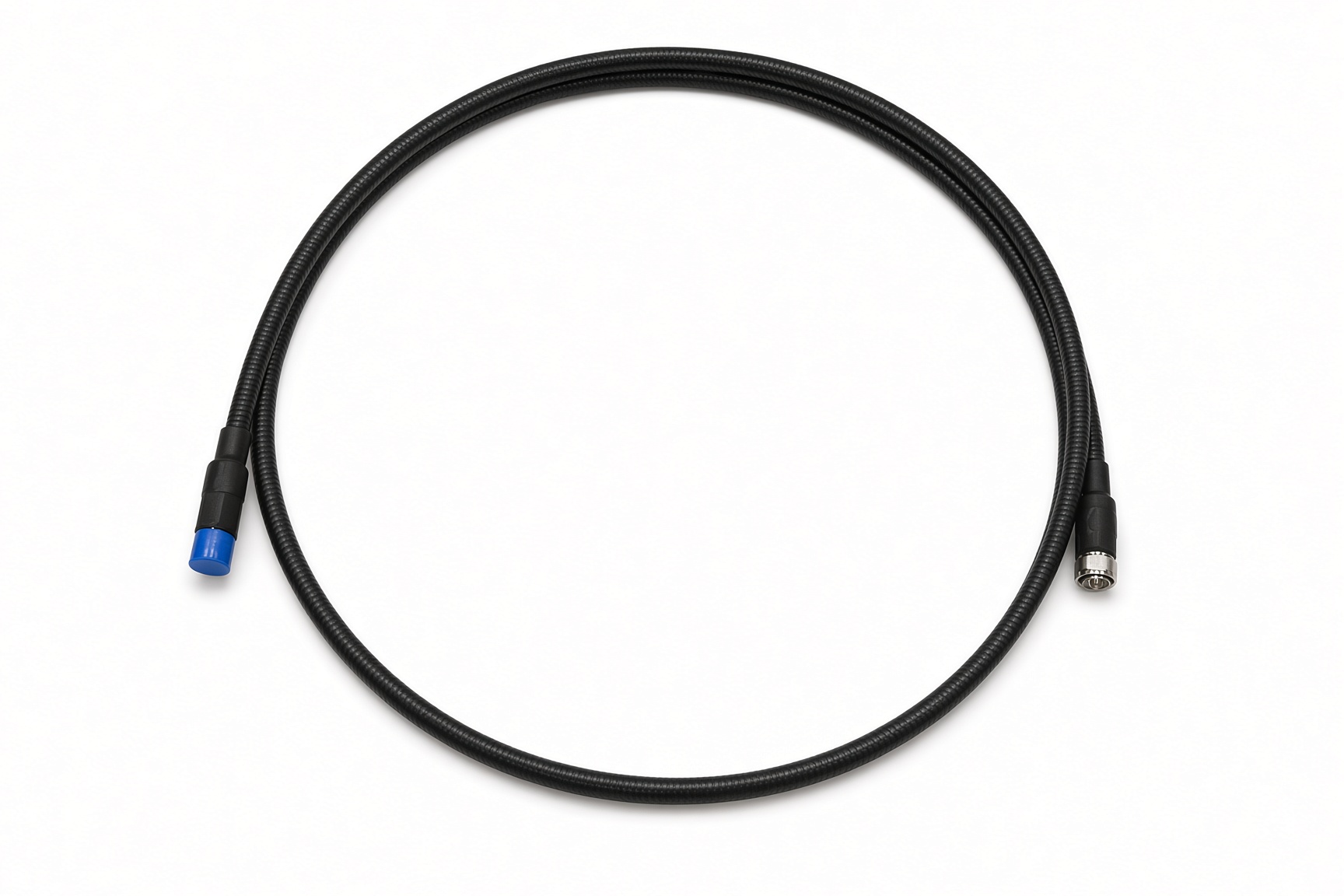

Black coaxial cable with 7/8 DIN male connectors at both ends

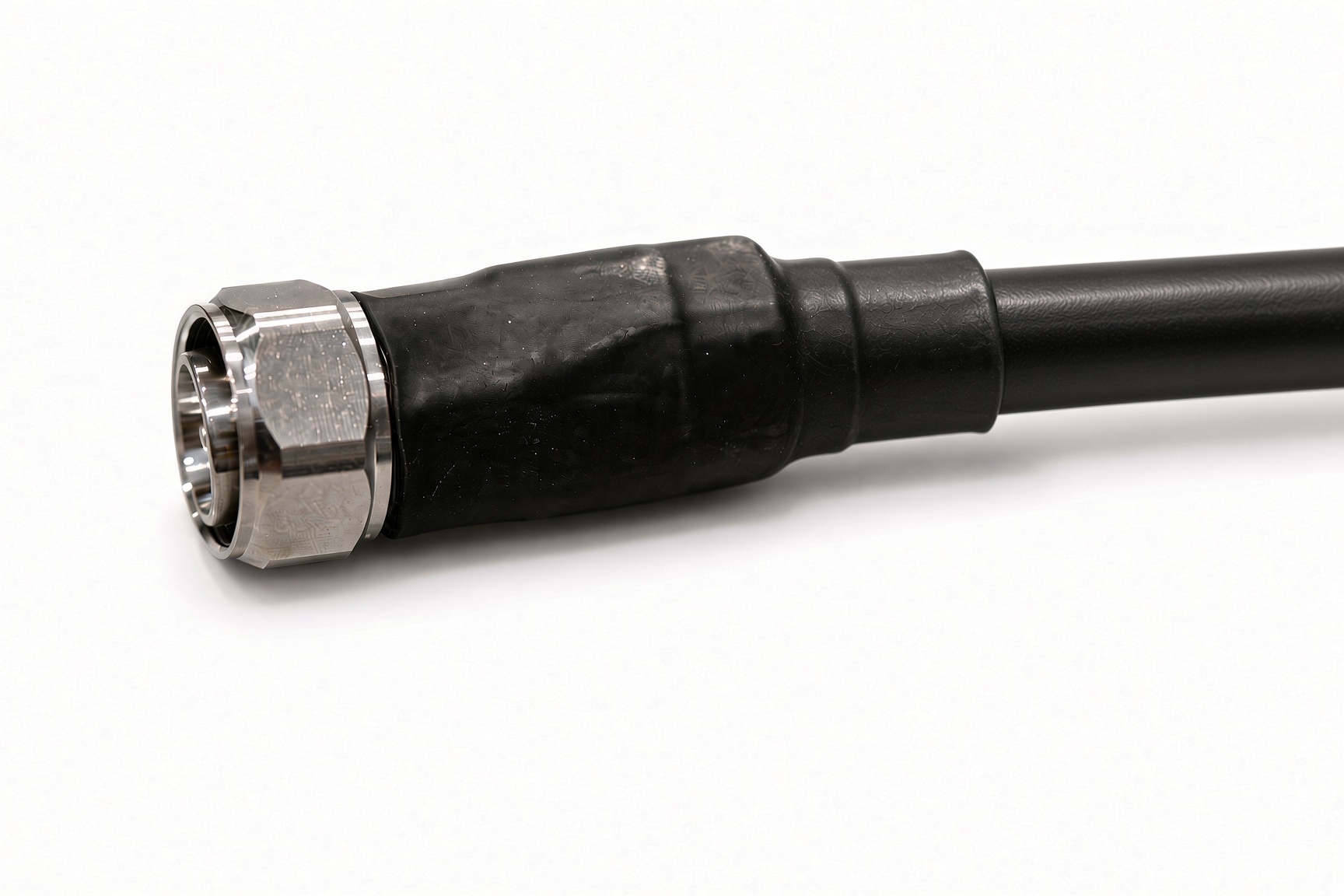

Close-up of 7/8 DIN male connector on black coaxial cable

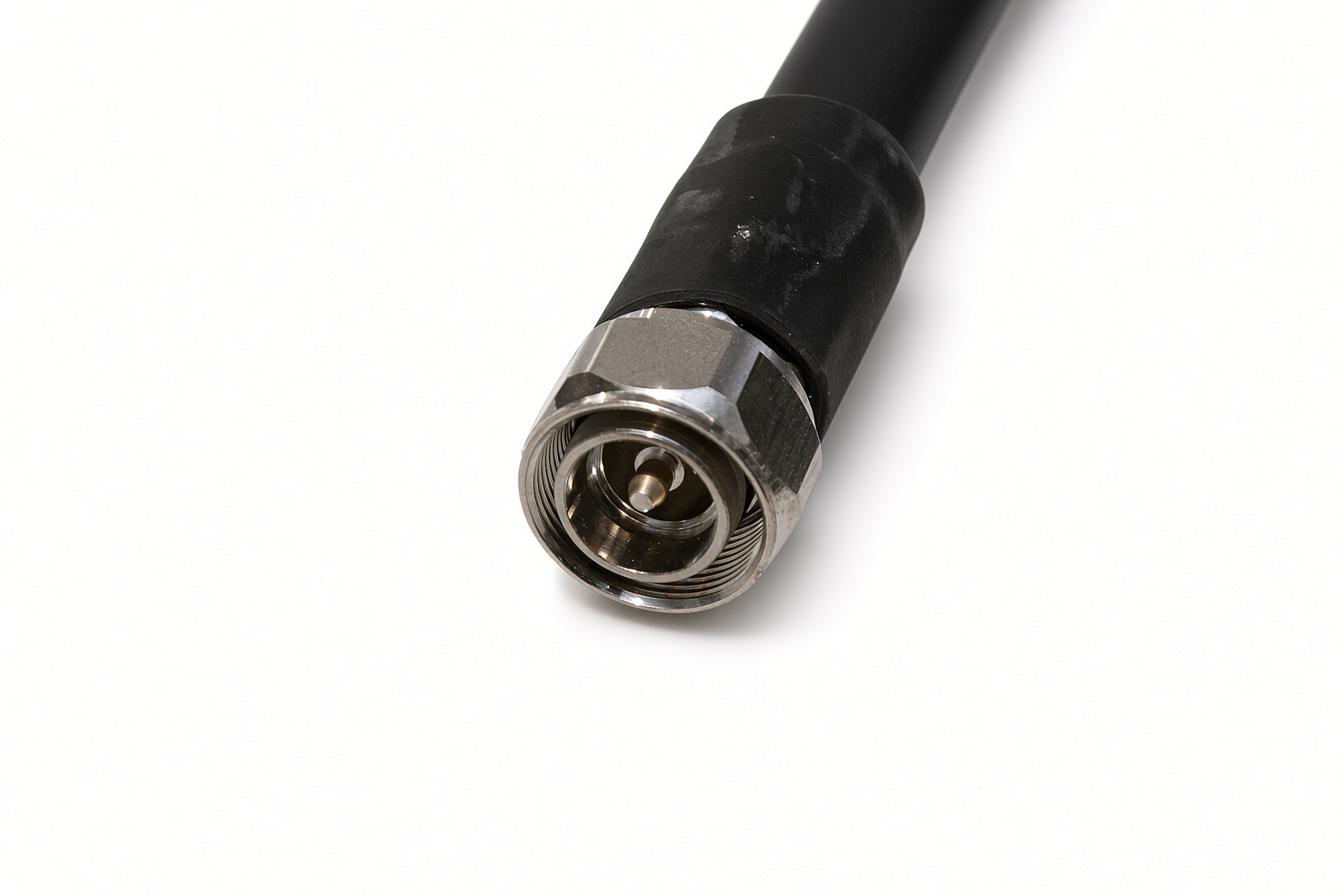

Detailed front view of 7/8 DIN male coaxial cable connector

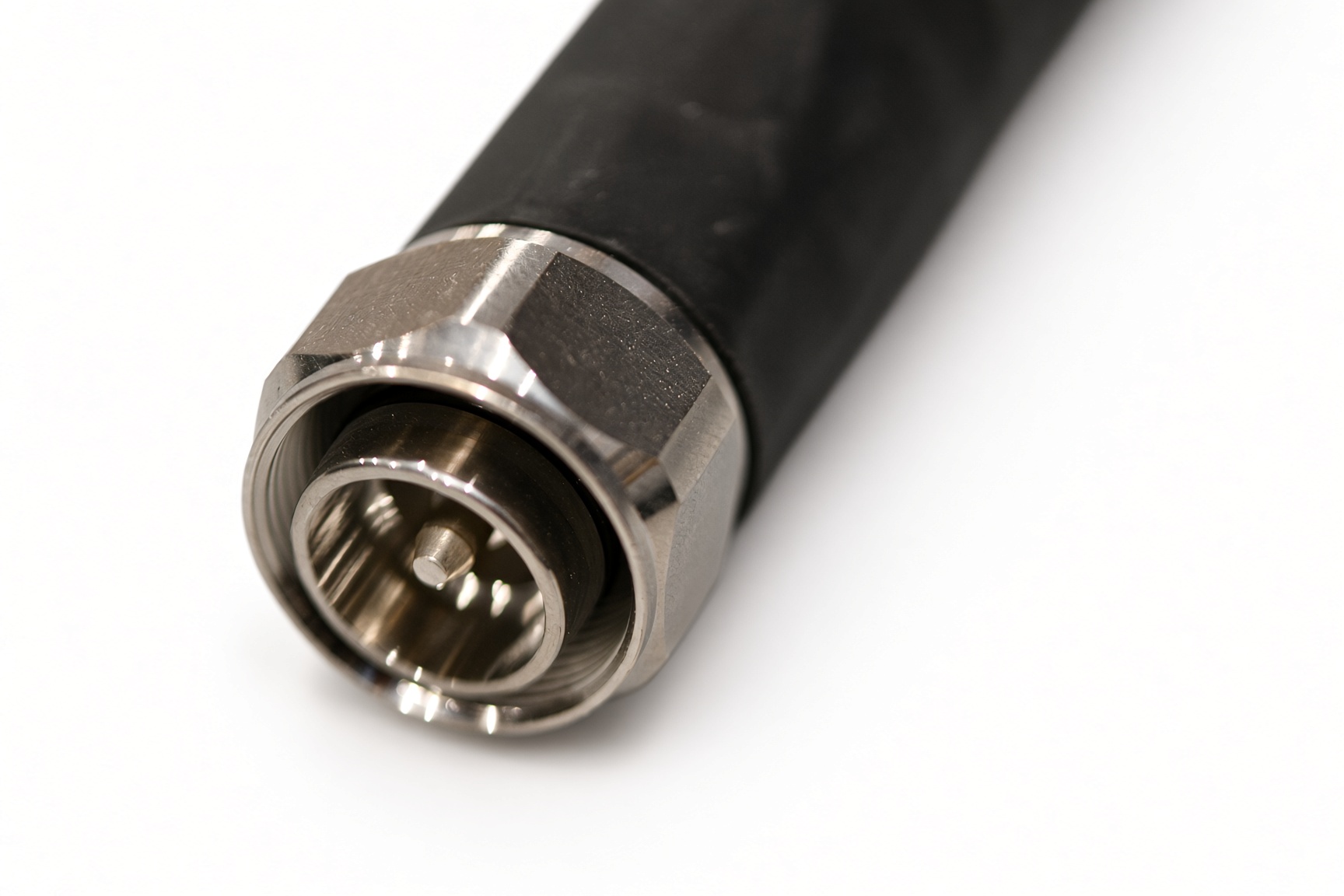

Angled close-up of 7/8 DIN male connector and black cable

F4A-DMDM-75-F

SKU: F4A-DMDM-75-F

Our F4A-DMDM-75-F cable is .5” 7-8” DIN male to 7-8” DIN male.
Premium heavy-duty construction optimized for low passive intermodulation (PIM).
Distance-to-fault (DTF) performance typically –34 dB at each connector.
Black polyethylene outer jacket (UV-resistant, outdoor-rated).
IP68-rated when mated properly (meets IEC 60529 immersion requirements).
Compatible with standard 7-16 DIN interfaces used in cellular, DAS, and microwave systems.
Excellent VSWR / return loss across cellular bands (typically ≤ 1.10–1.13 up to 2.7 GHz).
Our F4A-DMDM-75-F cable is 75 feet long (≈ 22.86 meters).
Factory-terminated 7-16 DIN Male connectors on both ends (straight body style).
Compatible with standard 7-16 DIN interfaces used in cellular, DAS, and microwave systems.
check out all our other cables for your potential needs.

275.00$
